STEEL GRATING

Maishi steel grating is in accordance with ISO 14122-2:2001 Safety of machinery - Permanent means of access to machines and industrial plants -
Part 2: Working platforms and gangways. and also meet to BS 4592
Part 1: 1995 and Chinese standard YB/T 4001 - 1998.
It is used as flooring, walkways, stair treads, drainage grates and other purposes It can be defined as a series of bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticule pattern. Load bearing bar's size from 20X2 mm to 150X8 mm flat bar or I bar the pitch center-to-center of load bearing bar from 15mm, 20mm, 25mm, 30mm, 40mm, 60mm. cross bars (transverse bars) are 4X4mm, 5X5mm, 6X6mm, 8X8mm,10X10mm twisted bar or 2X10mm, 2X20mm, 3X10mm, 3X20mm, 5X15mm, 5X20mm, flat bar, the pitch center-to-center of cross bar from 30mm to 200mm.
Customer's specification is available at your requests

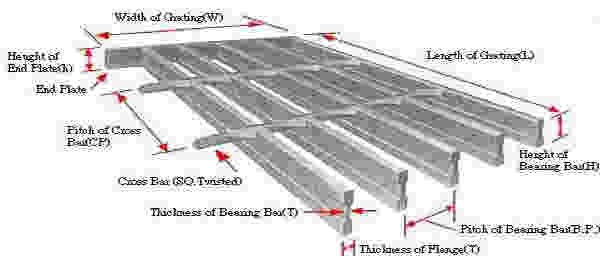

TECHNICAL DATE
