STAINLESS STEEL WIRE

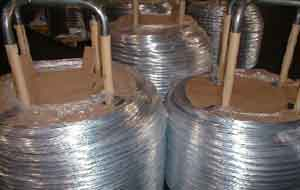

Stainless Steel Wire
Material:304,304L,316,316L
Diameter: 0.025mm to 5.0mm
Stainless Steel Hard Wire (Sizes: from 0.05mm to 5.0mm.) using: steel rope, steel brush, spring, stapler
Stainless Steel Soft Wire (size from 0.07mm to 0.6mm) using: weaving wire mesh, filtration mesh, gas pipe, high pressure pipe

PVC coated wire

Wire Diameter(mm)Tolerance(mm)Max. Deviation Tolerance(mm)
0.020-0.049+0.002
-0.0010.001
0.050-0.074±0.0020.002
0.075-0.089±0.0020.002
0.090-0.109+0.003
-0.0020.002
0.110-0.169±0.0030.003
0.170-0.184±0.0040.004
0.185-0.199±0.0040.004
0.200-0.299±0.0050.005
0.300-0.310±0.0060.006
0.320-0.499±0.0060.006

AISI
GradeStainless steel Chemical Composition(%)

CSiMnPSNiCrMo
304≤0.08≤1.00≤2.00≤0.045≤0.0308.00~10.5018.00~20.00-
304H>0.08≤1.00≤2.00≤0.045≤0.0308.00~10.5018.00~20.00-
304L≤0.030≤1.00≤2.00≤0.045≤0.0309.00~13.5018.00~20.00-
316≤0.045≤1.00≤2.00≤0.045≤0.03010.00~14.0010.00~18.002.00~3.00
316L≤0.030≤1.00≤2.00≤0.045≤0.03012.00~15.0016.00~18.002.00~3.00
430≤0.12≤0.75≤1.00≤0.040≤0.030≤0.6016.00~18.00-
430A≤0.06≤0.50≤0.50≤0.030≤0.50≤0.2514.00~17.00-
